KAF-I
Force Transducer
KAF-I
Force Transducer
- Force sensor for forces of 500 kN to 2.5 MN
- For measuring tensile and compressive forces
- For testing machines and systems

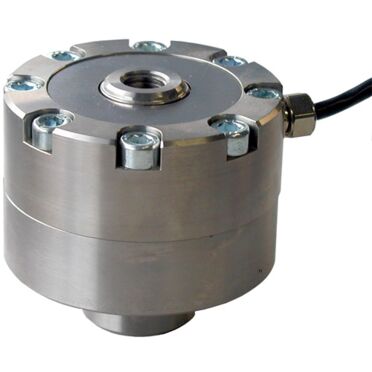

KAF-S-E Force Transducer
- Force sensor for forces of 100 N to 10 kN
- For materials-testing machines
- Low side-load sensitivity
Recommended amplifiers and controllers
Applications
- Measuring of tensile and compressile forces in machines and systems
- Material testing machines, testing stands
- Hydraulic cylinder
Special features
- 100 N up to 10 kN
- Small mounting dimension
- Made from stainless steel or aluminium ([lt]500N)
- Environmental protection IP42
