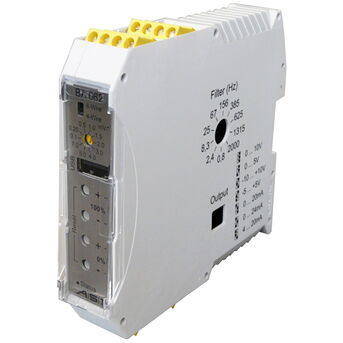

BA 662 Strain Gauge Measuring Amplifier

BA 662 Strain Gauge Measuring Amplifier

  • Strain-gauge amplifier for universal applications in control and automation technology
  • In DIN-rail mountable housing
  • Configurable including multipoint calibration via USB interface and PC with ASTAS software.
  • Strain gauge measuring
  • Process control
  • Industrial automation
  • Testing machines
  • Universal applicable
  • High accuracy by 24 bit A/D-converter
  • Configurable including multipoint calibration via USB interface and PC with ASTAS
  • Conversion rate up to 3200 Sps
  • Filter from 0.8 Hz to 2.0 kHz
  • Power supply 9 to 36 V galvanic isolated
  • 4- or 6-wire technology
  • Trigger input for zero point adjustment
  • Simple handling
  • DIN rail mountable
Inquire Now
